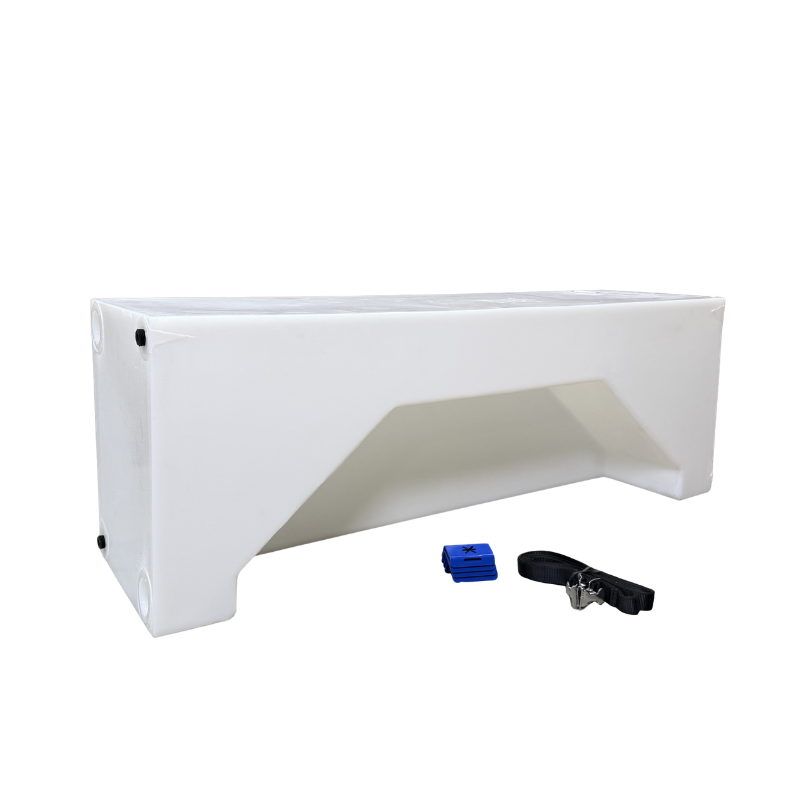

24-Gallon Ford Transit Wheel Well Water Tank - Center (TR-C-24)

24-Gallon Wheel Well Water Tank - Center (TR-C-24)

Designed specifically for the Transit van, this tank makes use of the space your wheel well would otherwise waste. It sits centered over the wheel well, keeping your floor plan open while adding serious water capacity for your van build.

Dimensions & Weight

• Size: 44.5" long × 12.5" wide × 16" tall
• Capacity: 24 gallons
• Weight: 28 lbs

Ports & Plumbing

• (2) 1.5" NPT ports on either end, pre-marked, drill out to use
• (2) 1/2" NPT ports on either end
• (1) 1.5" NPT port on top for fill or level sensor, pre-marked, drill out to use
• Not designed for pressurized systems, must be vented

Included With Every Order

• (x2) Adjustable straps
• (x4) Mounting brackets

Materials & Certifications

• BPA-free, food-grade polyethylene
• Made in the USA
• IAPMO TS 4 Certified

Vehicle Compatibility

• Designed specifically for the Transit van
• Can be placed on either driver or passenger side
