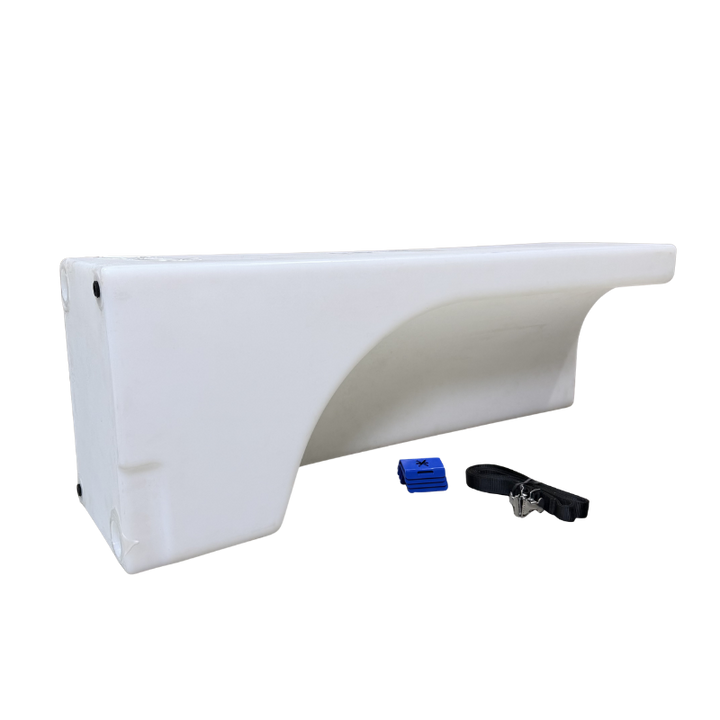

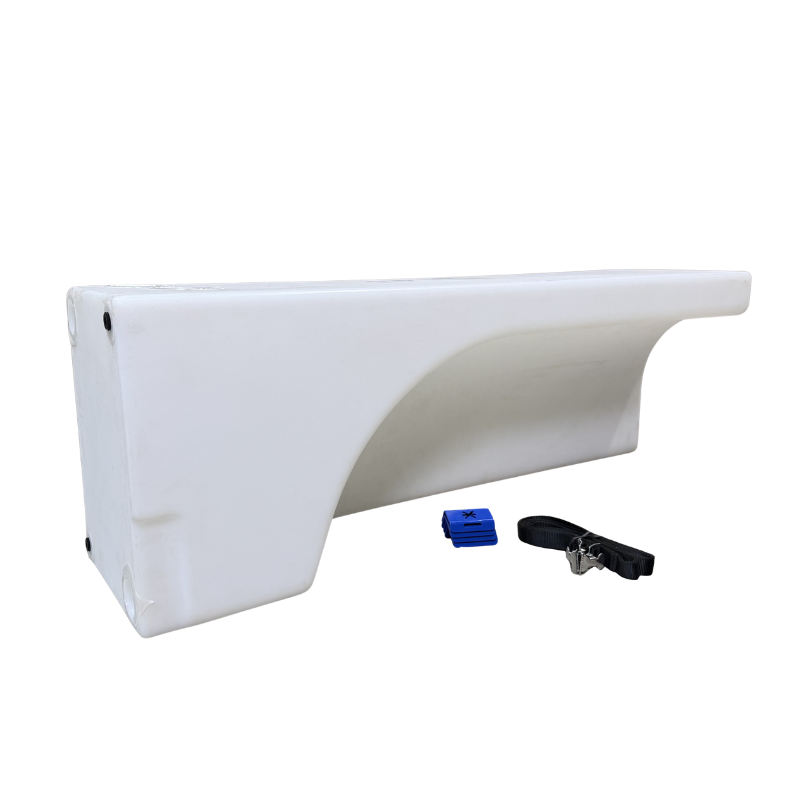

20-Gallon Wheel Well Water Tank - Right (SP-R-20)

20-Gallon Wheel Well Water Tank - Right (SP-R-20)

Make use of the space your wheel well would otherwise waste. This tank sits offset toward the rear or front of the wheel well depending on placement side, keeping your floor plan open while adding serious water capacity for your van build.

Dimensions & Weight

• Size: 45" long × 12.5" deep × 16" tall
• Capacity: 20 gallons
• Weight: 27 lbs

Ports & Plumbing

• (2) 1.5" NPT ports on the rectangular end, pre-marked, drill out to use
• (2) 1/2" NPT ports on the rectangular end
• (1) 1/2" NPT port on the bottom of the open end
• (1) 1.5" NPT port on top for fill or level sensor, pre-marked, drill out to use
• Not designed for pressurized systems, must be vented

Included With Every Order

• (x2) Adjustable straps
• (x4) Mounting brackets

Materials & Certifications

• BPA-free, food-grade plastic
• Made in the USA
• IAPMO TS 4 Certified

Vehicle Compatibility

• Sprinter 2500 direct fit (also fits Sprinter T1N)
• Transit (single rear wheel) fits with slightly more room around the wheel well for insulation
• ProMaster requires a 3.5" elevation to clear the larger wheel wells
• Compatible with other makes and models (see below)
• Passenger side: tank sits with majority rear of wheel well, flush to front
• Driver side: tank sits with majority front of wheel well, flush to rear
