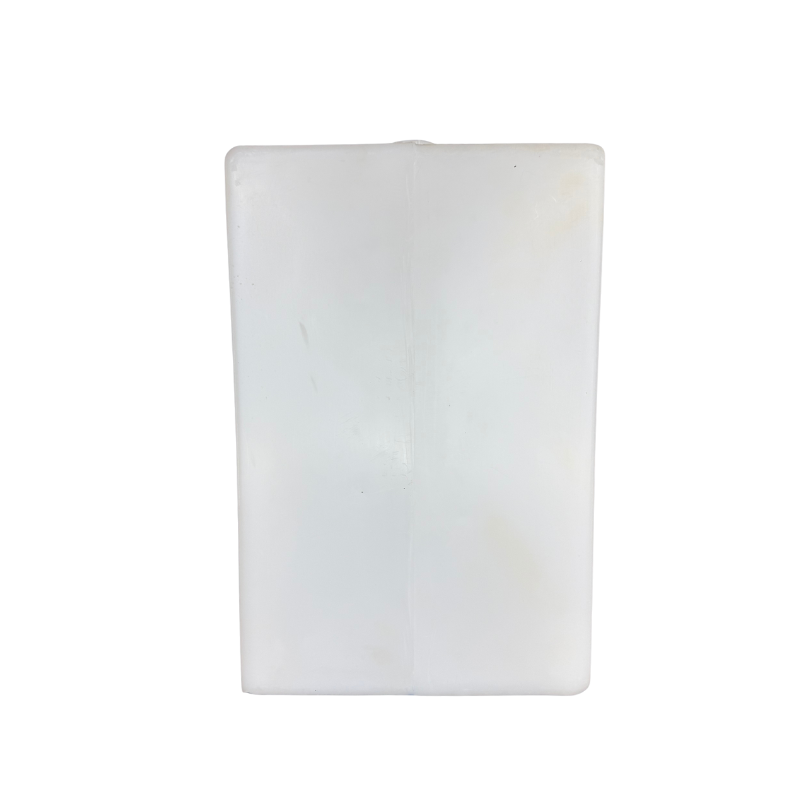

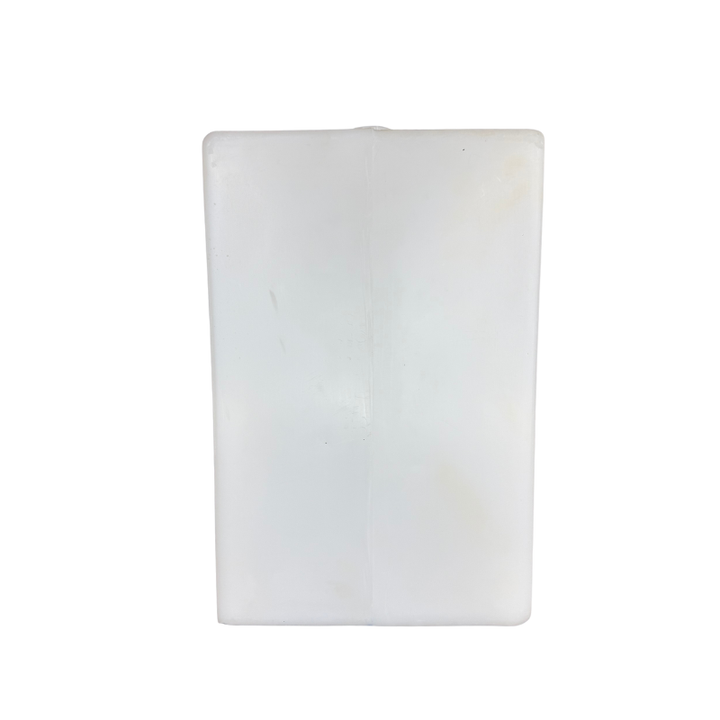

10-Gallon Galley Water Tank (Fresh/Grey)
NWU0258
10-Gallon Galley Water Tank - Fresh/Grey
Perfect for galleys, cabinetry, and compact conversions, this versatile fresh and grey water tank fits seamlessly into tight spaces without sacrificing interior room. Its compact box shape works great in galley cabinets, bench seats, or custom storage cavities, and can drain straight through your subfloor with a ball valve or connect to an undermount tank for additional storage.

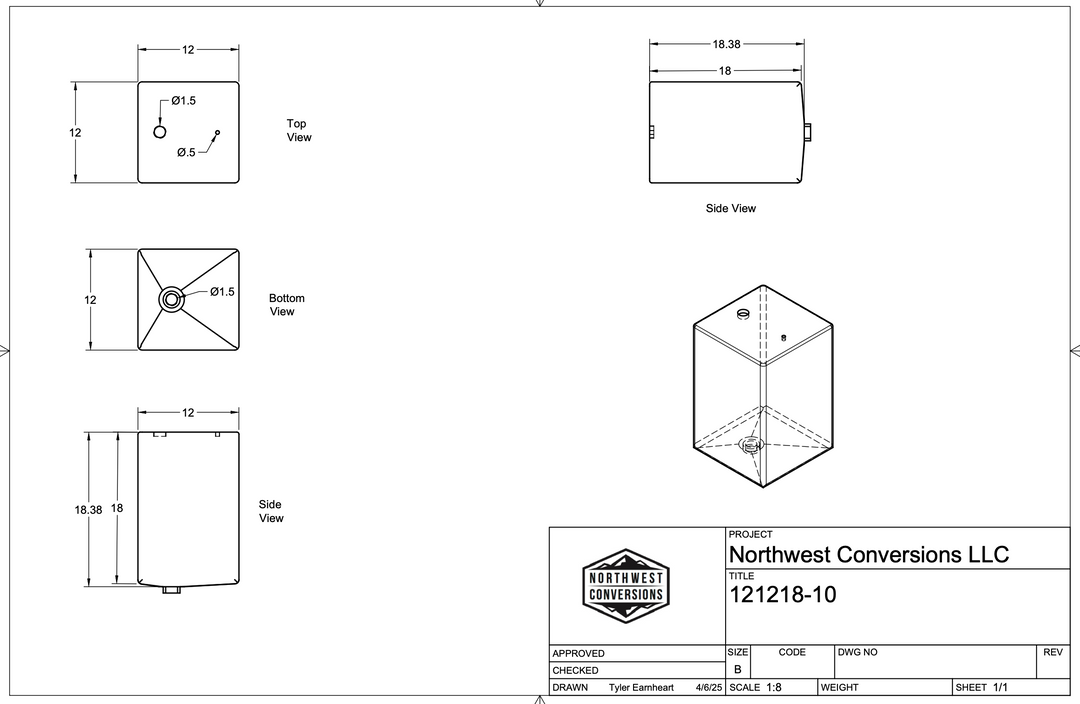

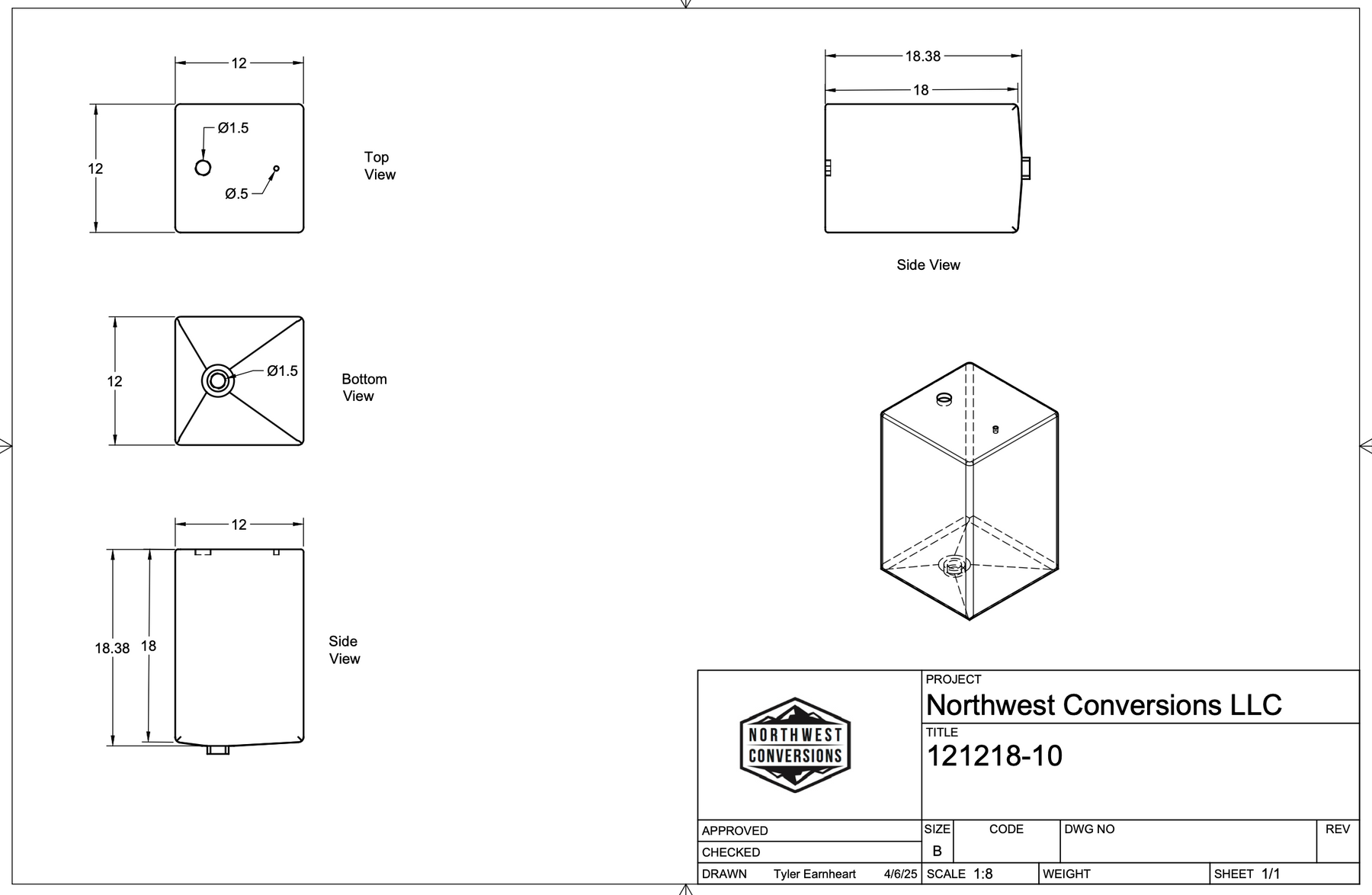

Dimensions & Weight
- Size: 12" long × 12" wide × 18" tall
- Capacity: 10 gallons
- Weight: 10 lbs
Ports & Plumbing

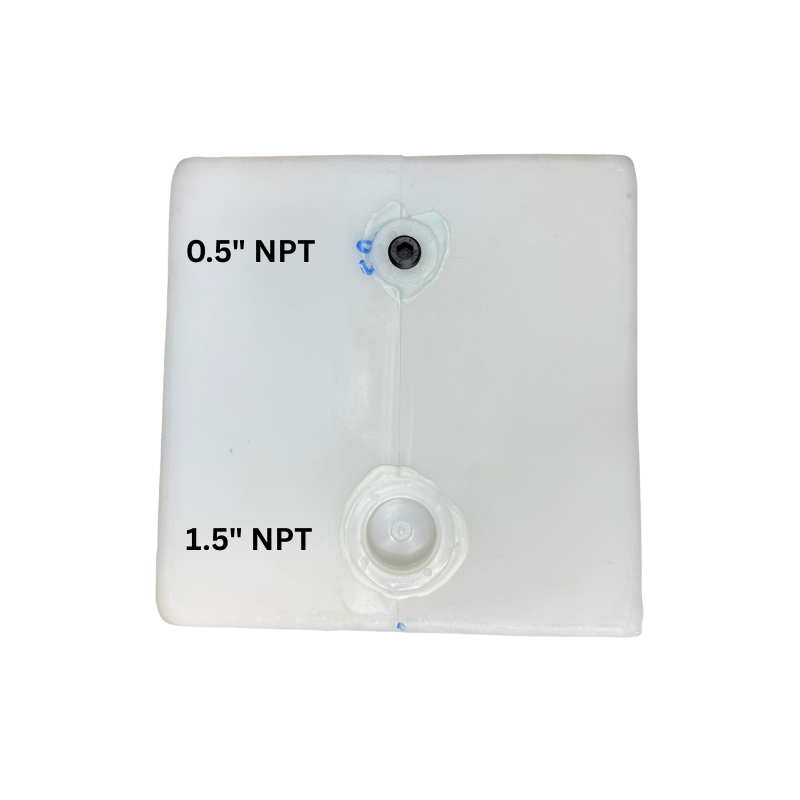

- 1/2" NPT fittings, pre-installed

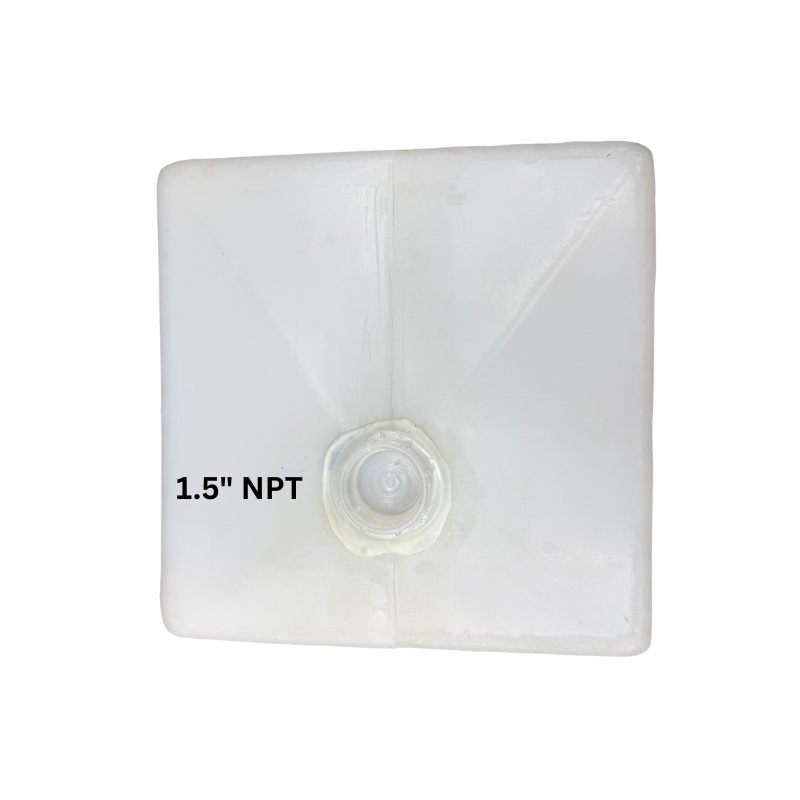

- 1.5" NPT fittings, pre-installed
- Not designed for pressurized systems, must be vented
Materials & Certifications
- BPA-free, food-grade polyethylene
- IAPMO TS 4 Certified (fresh water)
- IAPMO TS 2 Certified (grey water)
- CSA B45.6 Certified (grey water)
- Made in the USA
Vehicle Compatibility

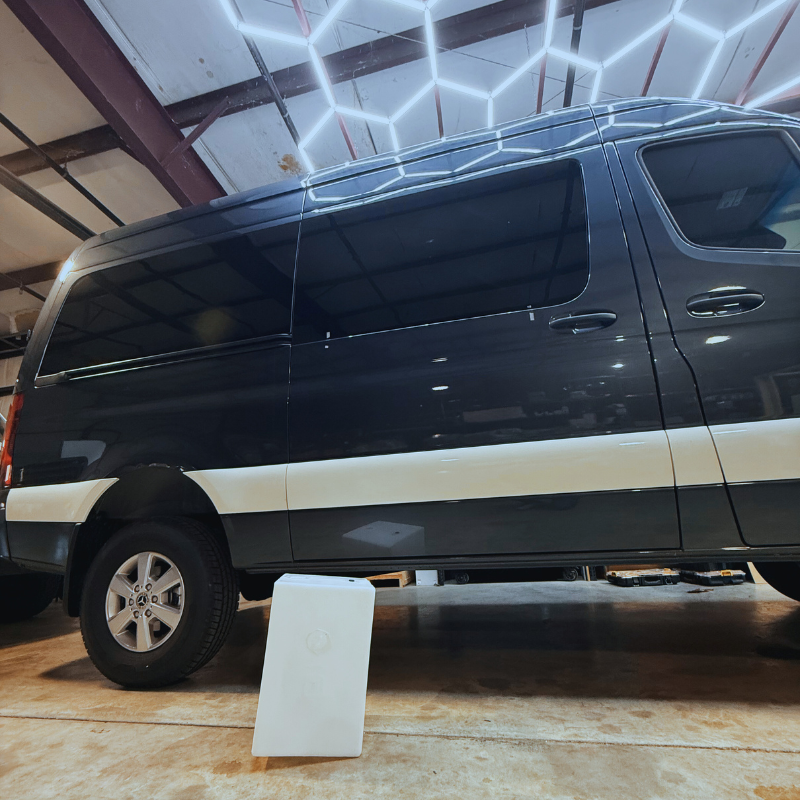

- Compatible with any van, truck, or RV platform where dimensions allow, including Sprinter, Transit, and ProMaster builds
