NW Conversions 36 Gallon Wheel Well Water Tank - Centered (SP-C-36)

• 36 Gallon Water Tank (SP-C-36)
• Centered over the wheel well

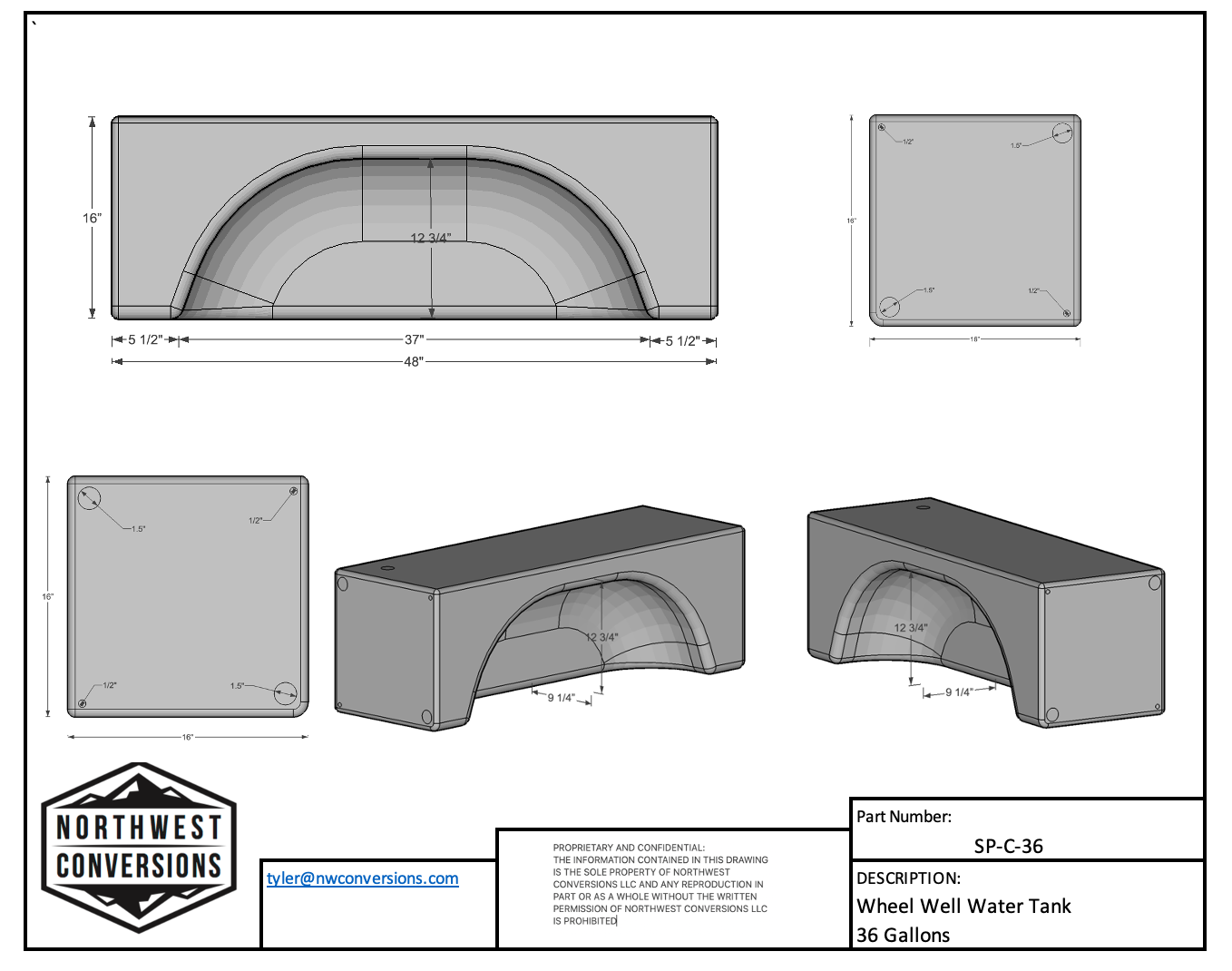

• 48” long, 16” deep, 16” tall
• Designed to fit Sprinter Van 2500
• TRANSIT Van wheel wells are slightly smaller than the Sprinter so there is a bit more room for insulation around wheel well.
• **PROMASTER**  needs to be elevated 3.5" to fit the large wheel wells.
• Can be placed either driver or passenger side
• These tanks have (2) 1.5” NPT ports and (2) 1/2” NPT ports on each end and (1) 1.5” NPT port on top that can be used for fill or sensor.
• Tank is designed not to be pressurized (I.e.  Needs to be vented).
• Tanks are made from BPA Free Food Grade Plastic
• IAPMO TS 4 Tested and Certified
• Made in the USA

The 36 gallon wheel well water tank is designed to use the wasted space around the well. It is designed to fit the Sprinter 2500, Sprinter T1N and Transit single rear wheel vans. The tank can also fit other vehicle makes and models.

Check out exterior tanks: Additional Undercarriage 16 gallon water tank or The 11 Gallon Sprinter Undercarriage Water Tank

Weight: 31 lbs
Dimensions: 48 × 16 × 16 in

Tank Compatibility:
