About the Product
Made for a Mercedes Sprinter. Fits the wheel well space, keeping your floor plan open while adding water capacity. Sits centered over the wheel well.
Features
Specifications

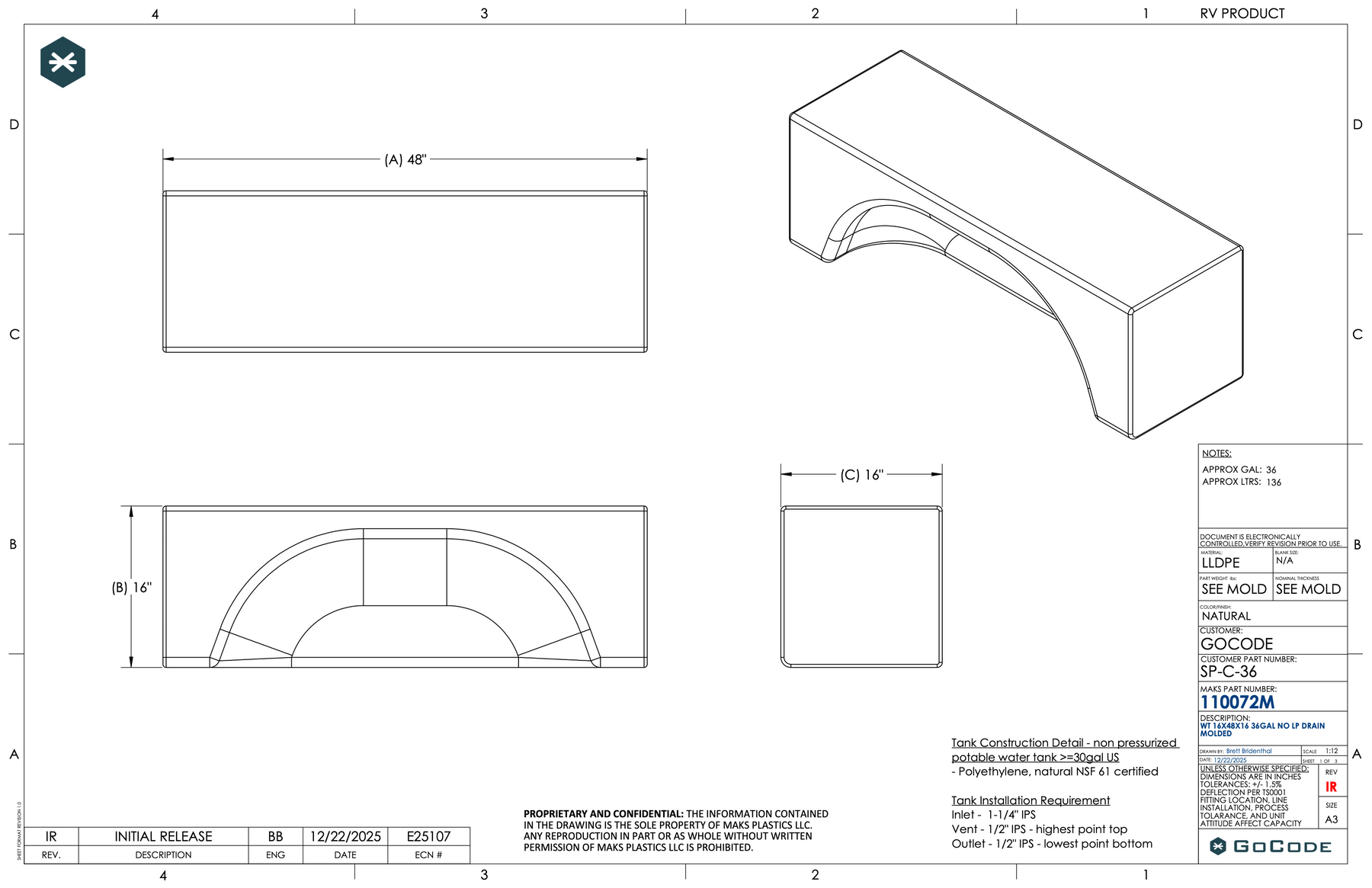

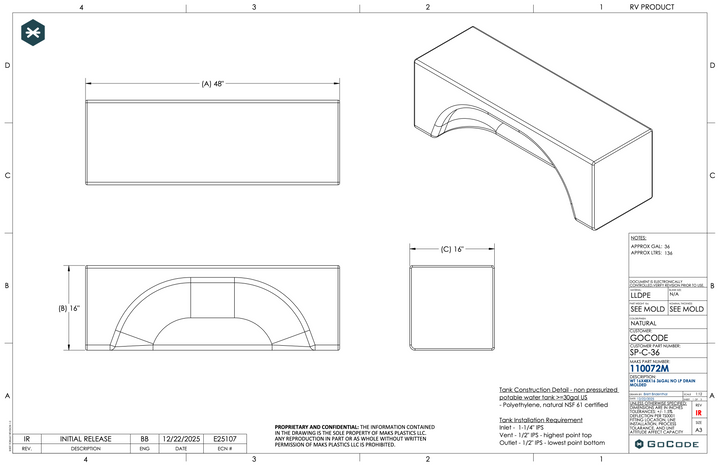

- Size: 48" long × 16" deep × 16" tall
- Capacity: 36 gallons
- Weight: 31 lbs
- Recommended sensor: KUS 154015F, 15" (1.5" NPT threaded)
- Not designed for pressurized systems, must be vented
Materials & Certifications
- BPA-free, food-grade plastic
- IAPMO TS 4 Certified
- Made in the USA
- TEi listed and RVIA approved
What's Included
- Water Tank
- (x2) Adjustable straps
- (x4) Mounting brackets
Ports & Plumbing
- (2) 1.5" NPT ports on either end, pre-marked, drill out to use
- (2) 1/2" NPT ports on either end
- (1) 1.5" NPT port on top for fill or level sensor, pre-marked, drill out to use
Shipping & Lead Time
- Ships in 1-2 business days
Compatibility
- Sprinter 2500 direct fit (also fits Sprinter T1N)
- Transit (single rear wheel) fits with slightly more room around the wheel well for insulation
- ProMaster requires a 3.5" elevation to clear the larger wheel wells
- Compatible with other makes and models (see below)
- Can be placed on either driver or passenger side
