About the Product
Designed specifically for dual rear wheel vans, this tank fits the wheel well space, keeping your floor plan open while adding water capacity.
Features
Specifications

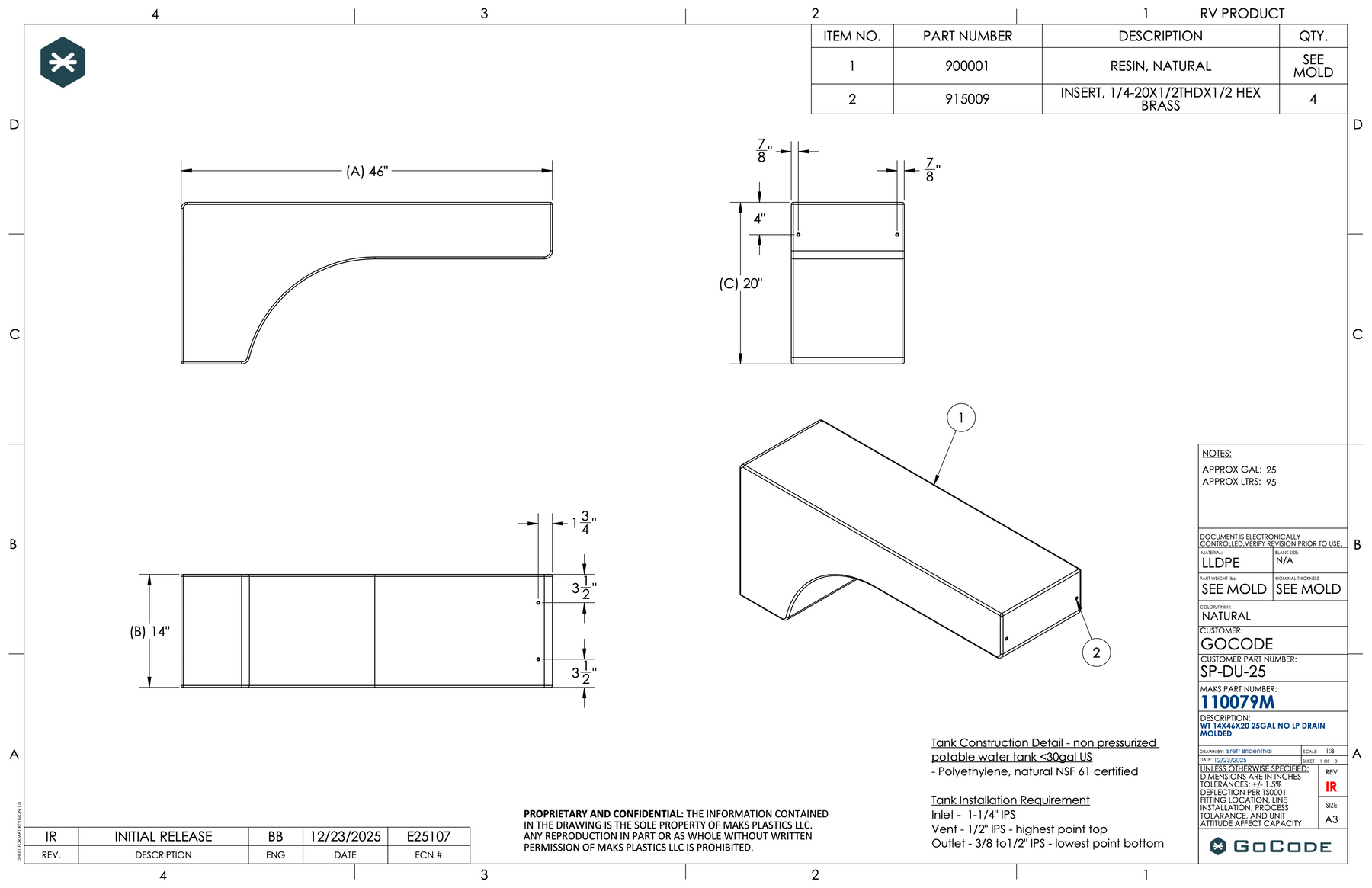

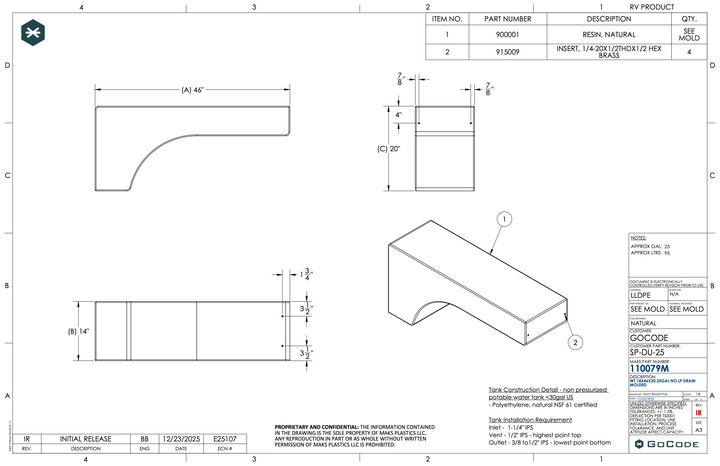

- Size: 46" long × 14" wide × 20" tall
- Capacity: 25 gallons
- Weight: 28 lbs
- Recommended sensor: KUS 154019F, 19" (1.5" NPT threaded)
- Not designed for pressurized systems, must be vented
Materials & Certifications
- BPA-free, food-grade plastic
- IAPMO TS 4 Certified
- Made in the USA
- TEi listed and RVIA approved
What's Included
- Water Tank
- Support plate and mounting hardware included with every order
Ports & Plumbing
- (2) 1.5" NPT ports on the larger end, pre-marked, drill out to use
- (2) 1/2" NPT ports on the larger end
- (1) 1.5" NPT port on the end above the wheel well, pre-marked, drill out to use
- (1) 1/2" NPT port on the end above the wheel well
- (1) 1.5" NPT port on top, pre-marked, drill out to use
Shipping & Lead Time
- Ships in 1-2 business days
Compatibility
- Sprinter 3500 Dually primary fit (also fits Sprinter T1N dually)
- Transit Dually direct fit with slightly more room around the wheel well for insulation
- ProMaster requires a 3.5" elevation to clear the larger wheel wells
- Compatible with other makes and models
- Can be placed on either driver or passenger side
