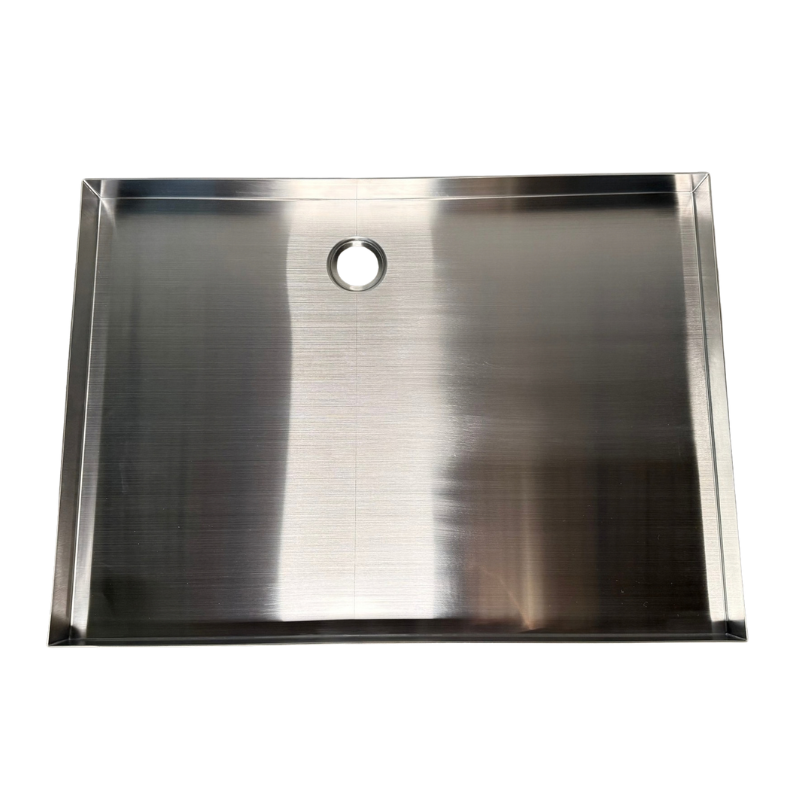

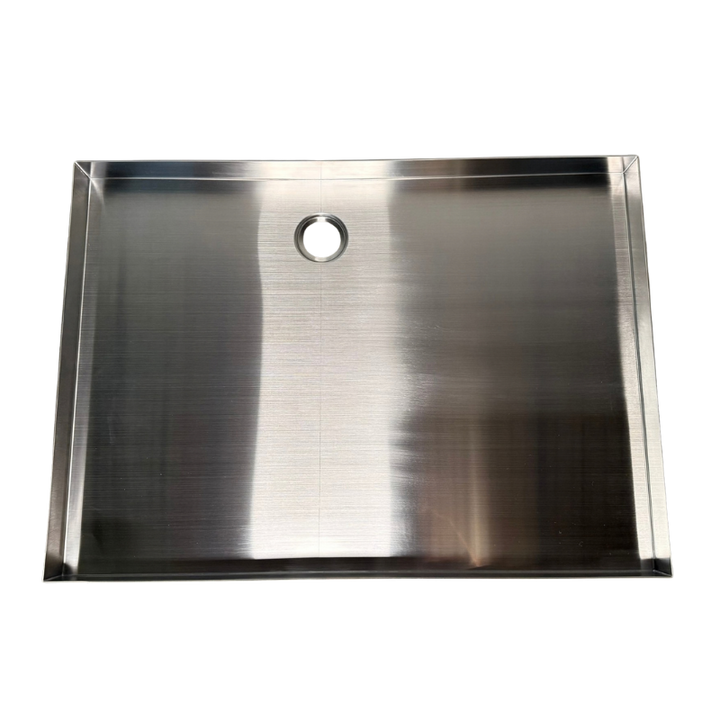

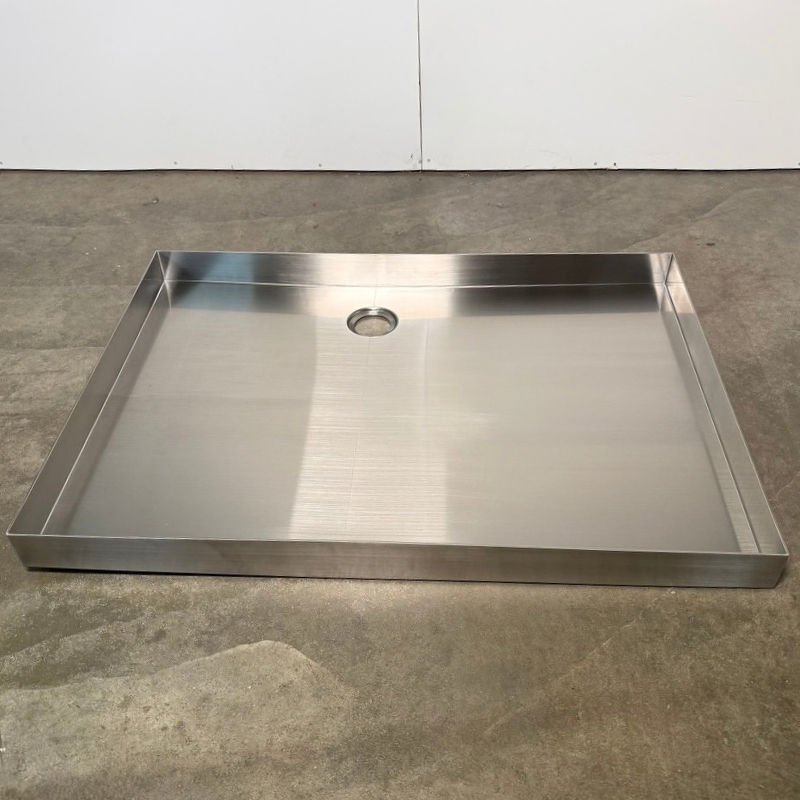

Deep In-Floor Shower Pan
TVU0187-6
About the Product
The GoCode Deep In-Floor Shower Pan is a van shower pan that is designed to recesses into your floor, and provides a vertical perimeter surface to receive waterproof wall panels or GoCode's magnetic shower curtain. A cross break in the bottom directs water to the drain. Made from brushed 2205 stainless steel and measuring 30" x 21.5", it fits any van, trailer, or RV build. Made in partnership with Venturhaus, it’s a straightforward alternative to the FOLD Shower for builders who want a permanent, low-profile shower footprint.
Features
- Recesses into your floor surface
- Cross break bottom directs water to drain
- Brushed magnetic 2205 stainless steel

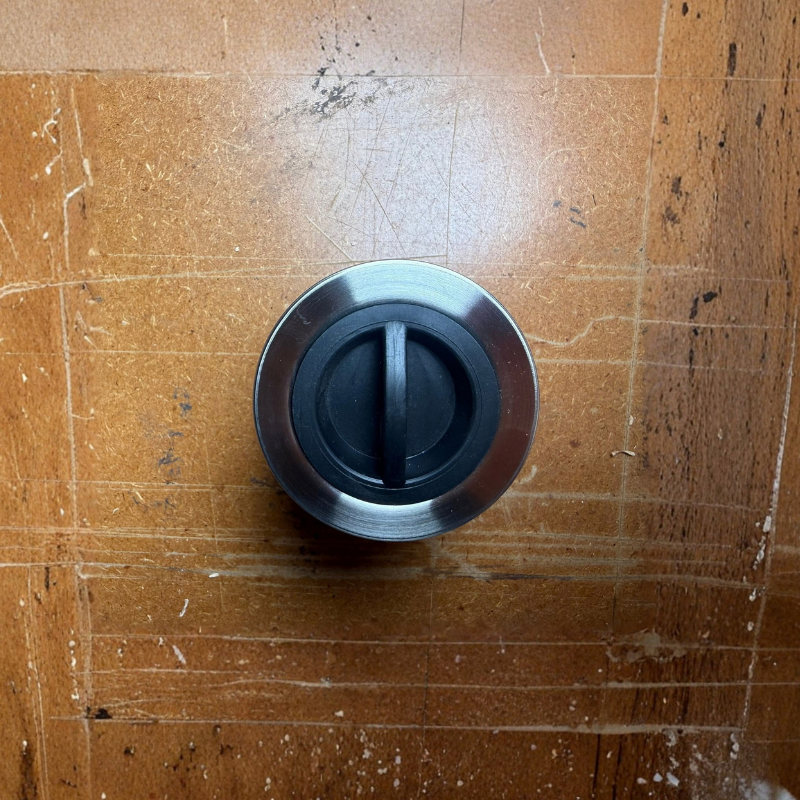

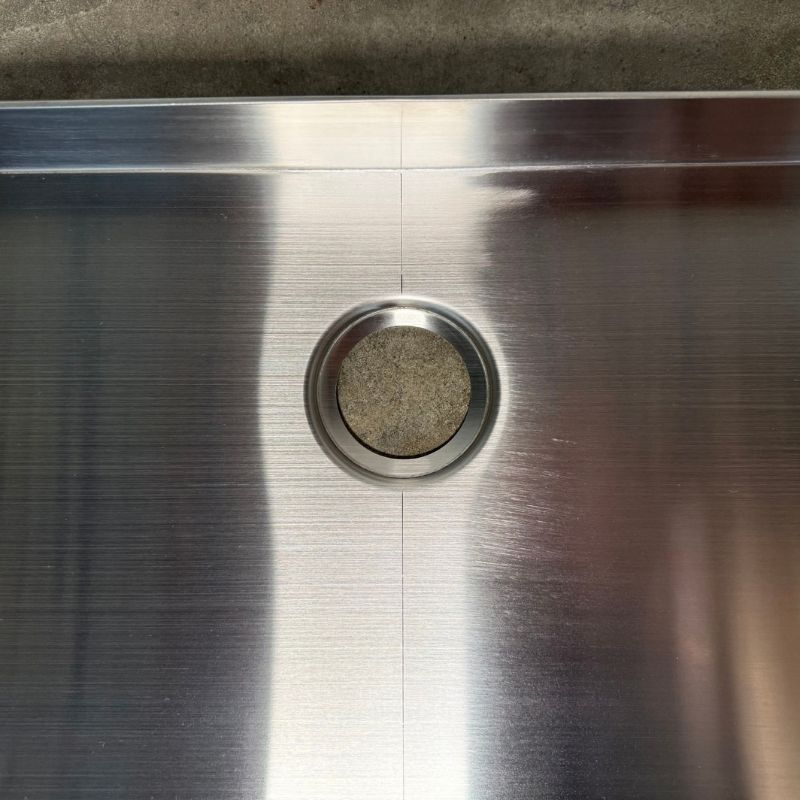

- Drain with included 1-1/2" threaded straight drain fitting

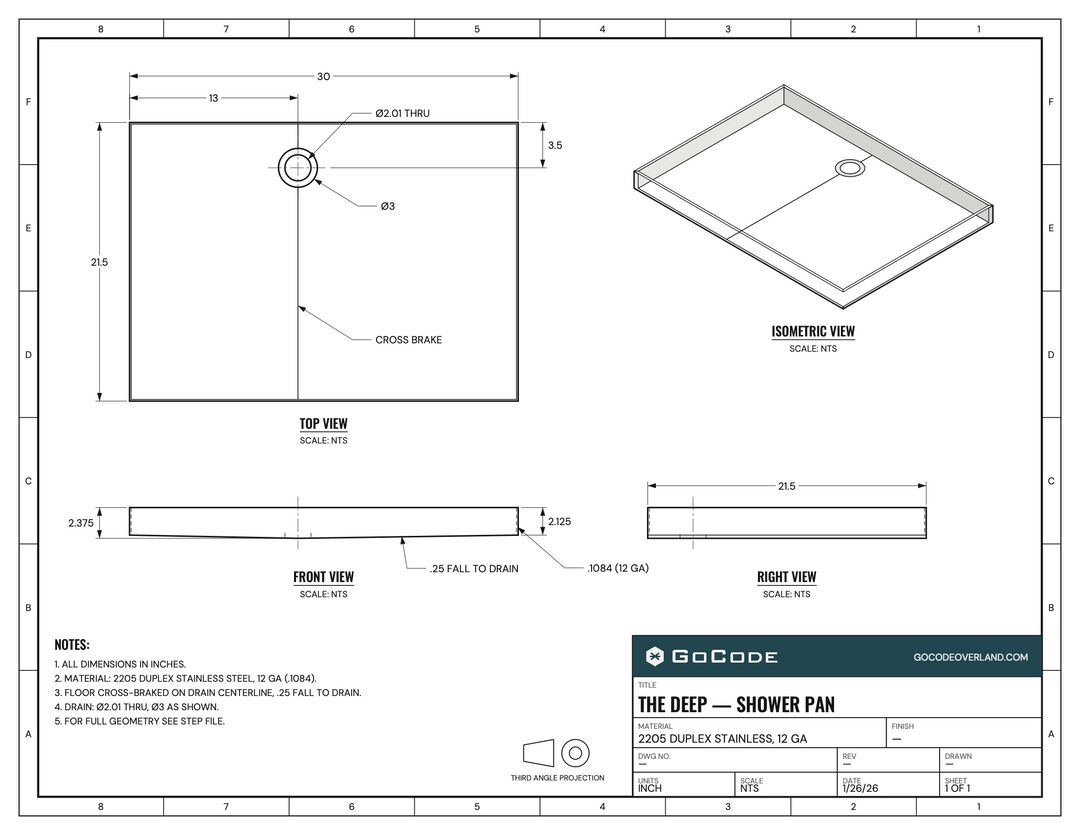

Dimensions
- Overall: 30" x 21.5"
- Depth (at the deepest point): 2.375"
- Center Drain Diameter: 2.01"
- Material: 2205 Stainless Steel (Magnetic), Brushed Finish
What's Included
- Deep In-Floor Shower Pan

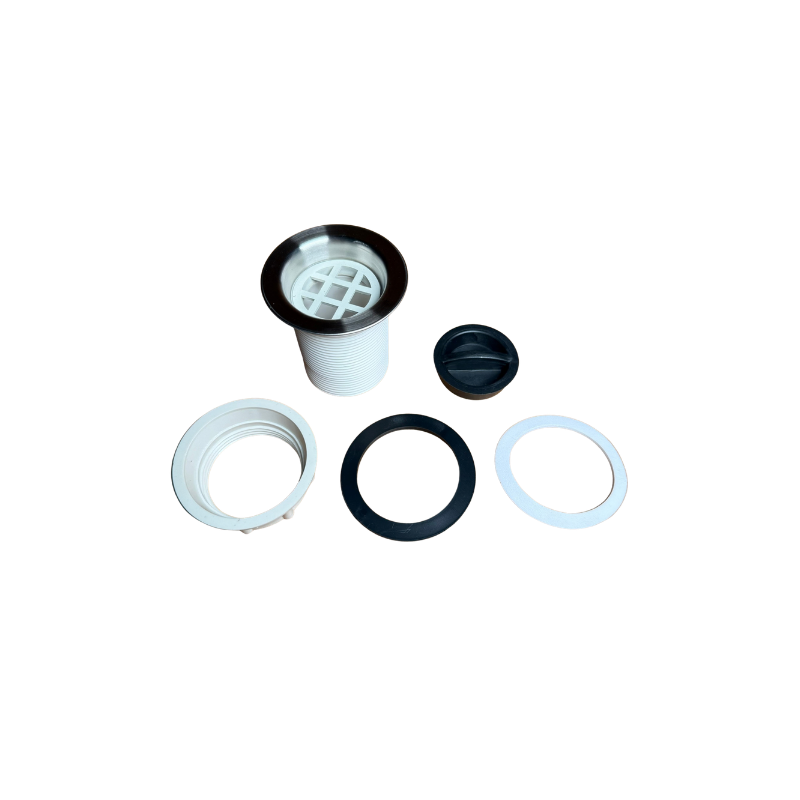

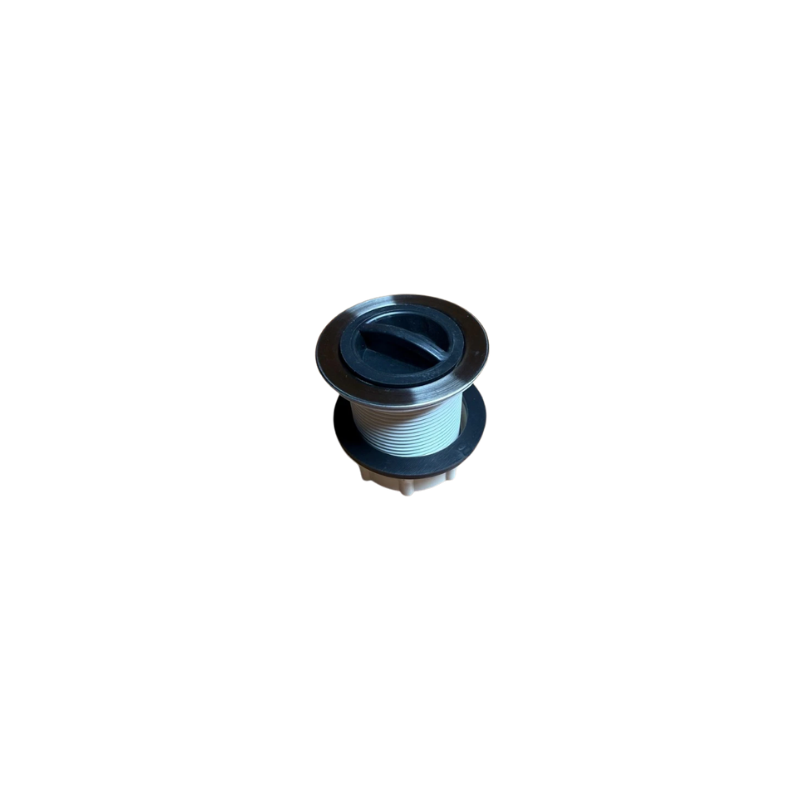

- 1-1/2" threaded straight drain fitting
Compatibility
- Compatible with any van, trailer, or RV build with adequate subfloor depth
Shipping & Lead Times
- Ships in 1-2 business days
Resources
Need Help? Not sure about your van's configuration? Contact us, we're happy to help.
