TVS0187
Get notifications about this item:

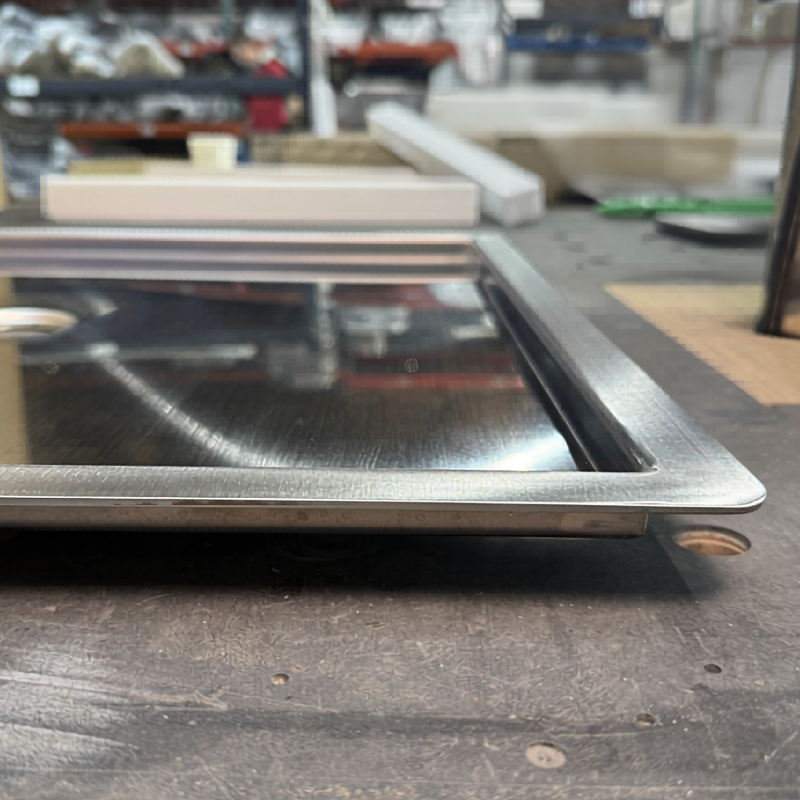

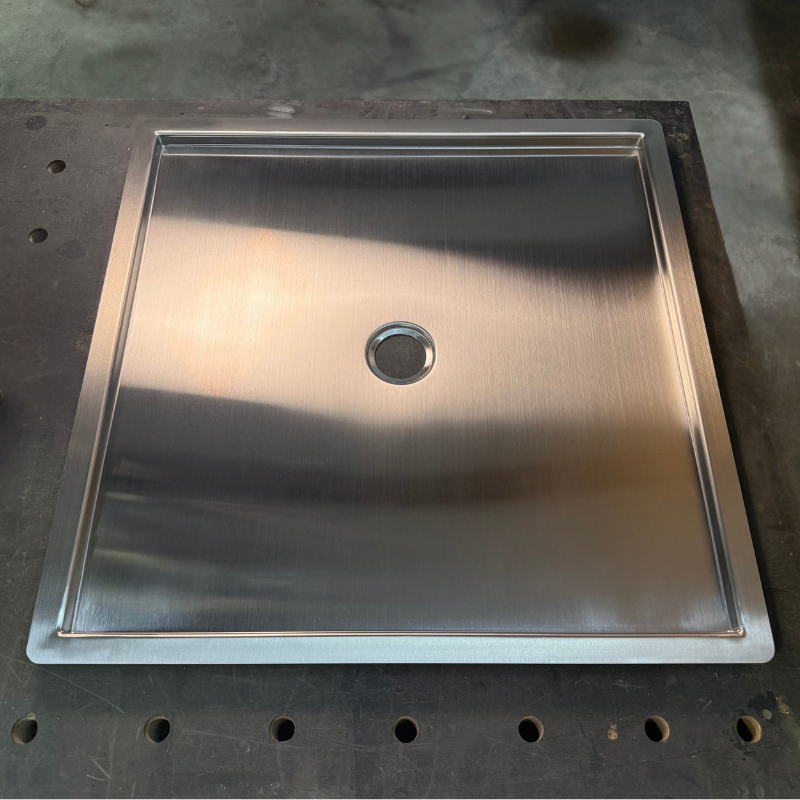

The Tetravan Slim In-Floor Shower Pan is the slimmest shower pan offered. It's designed specifically for builds where every fraction of an inch counts. At just 3/4" deep, it requires only a 3/4" subfloor, compared to the 1.3" minimum needed for the standard shower pan. This makes it the ideal solution for truck campers, popup campers, fifth wheels, and van conversions with thinner subfloor assemblies.
Like the original Tetravan In-Floor Shower Pan, the Slim is made from brushed magnetic stainless steel and is designed to be recessed flush into your floor surface; out of the way and hidden in plain sight. It maximizes headroom while keeping your shower footprint compact.

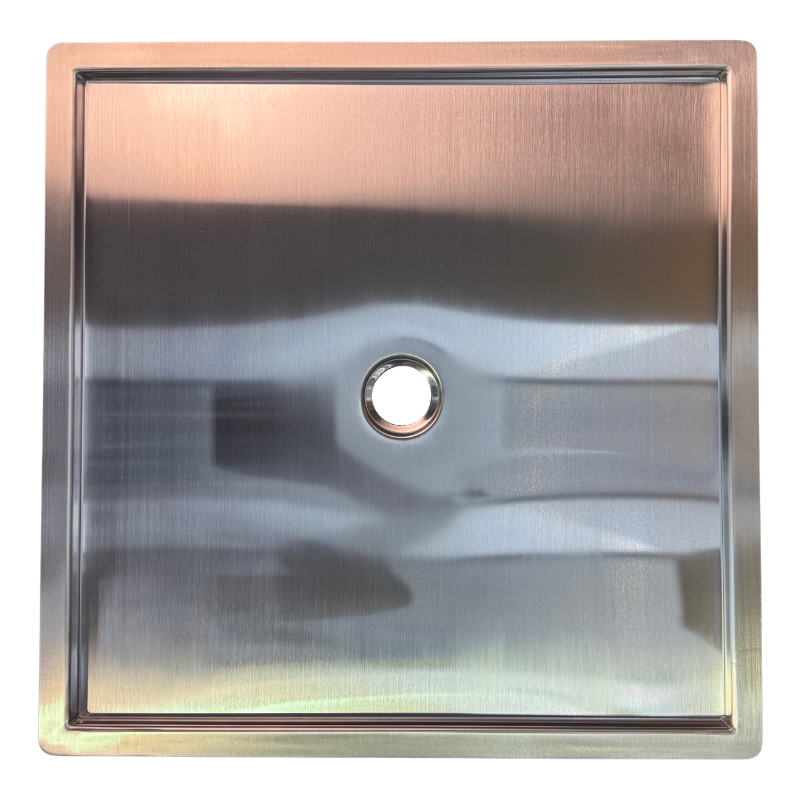

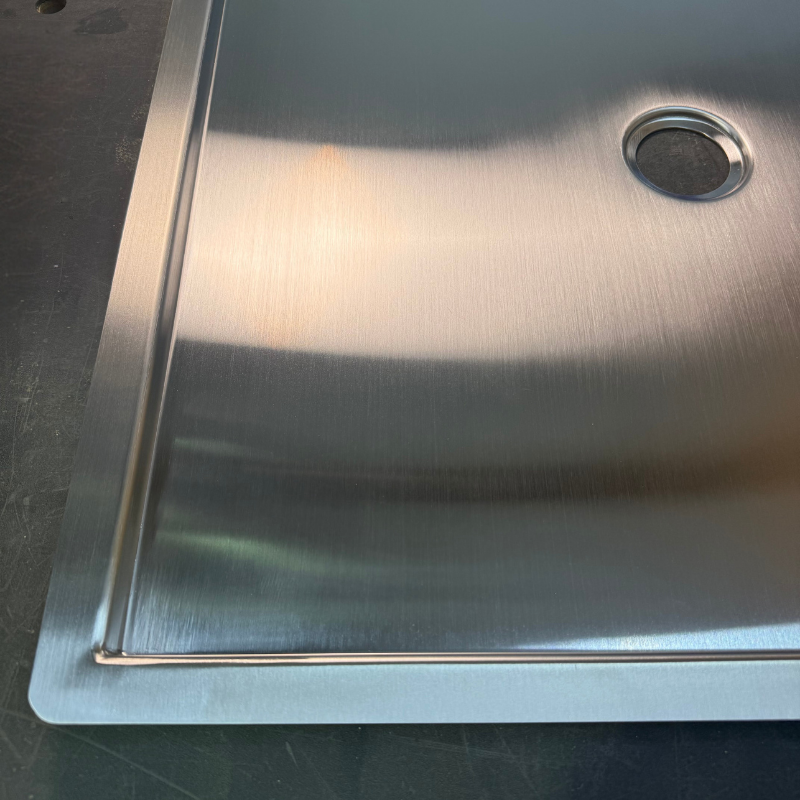

Center drain only. The Slim features a center drain with an included 1-1/2" threaded straight drain fitting.
The Slim is compatible with the Tetravan Universal Shower Curtain - the curtain's 3/8" tall magnets grab securely around the 3/4" pan edge for a watertight seal.
Includes:
IMPORTANT: The Slim has flat drainage. Unlike the standard Tetravan In-Floor Pan, the Slim has a flat bottom with no built-in drainage angles. On a level surface, water will not self-drain. It's recommended to use a squeegee or manual drying after use. If your build sits on a slight slope, water will drain naturally toward the low side.
Installation notes: We recommend adhesive on the underside of the flange and at least 1" countersunk screws through the flange into the subfloor. Your build should be level, or on a slope, for proper drainage given the flat pan bottom.
