About the Product

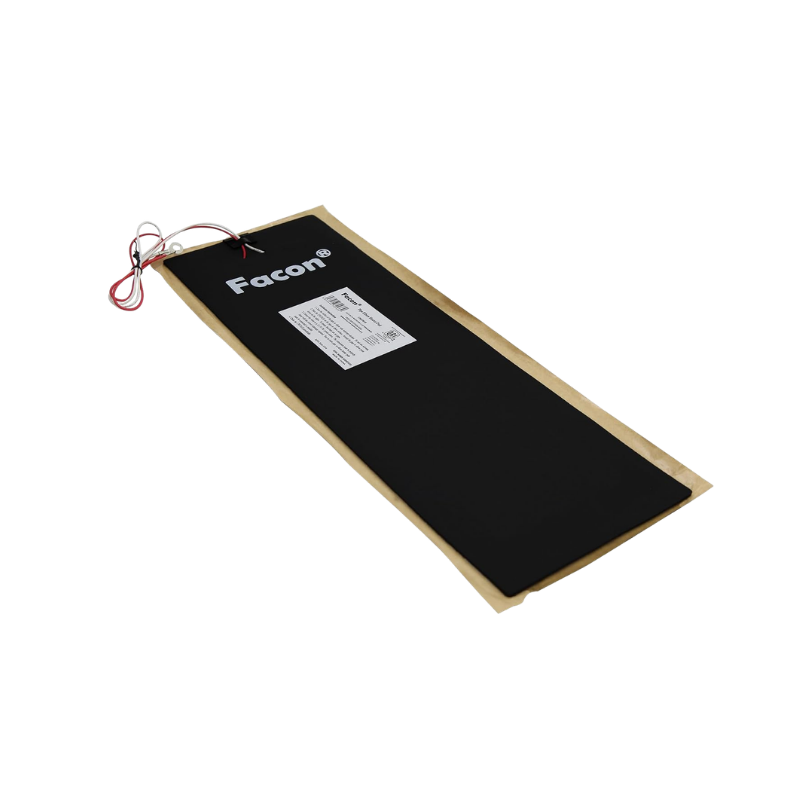

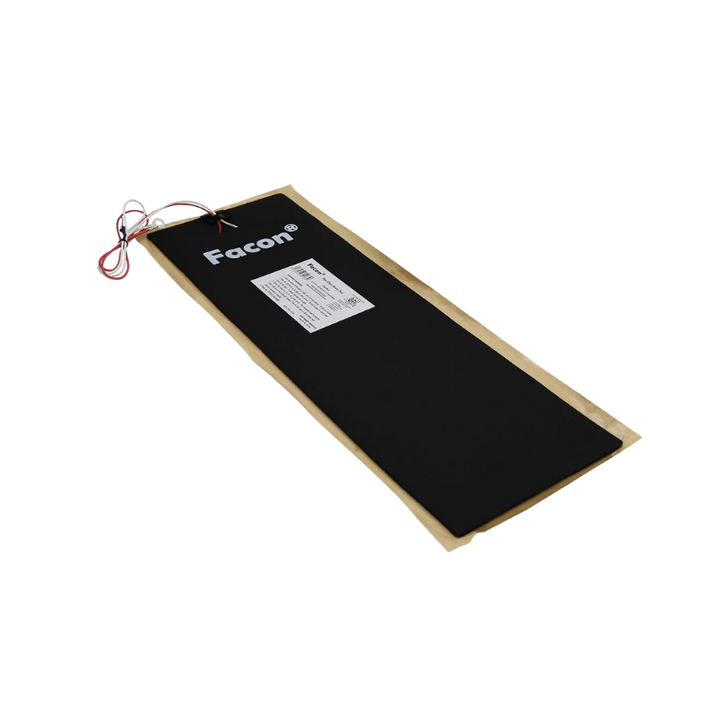

The Facon CW-P618 is a 6" x 18" self-adhesive silicone heater pad sized to wrap a 1-1/2" pipe. That is the fill line, drain line, or fresh water run most likely to freeze first on a build. It bonds directly to the pipe and runs off a 12V circuit. Unlike the tank pads, this one has no thermostat. It stays off until you flip the switch, which means you control when it runs. Pair it with a manual switch, a timer, or an external thermostat depending on how you want to manage it.
**CURRENTLY ON A 3 WEEK LEAD TIME**
Features
- 12V DC, wired to the house battery circuit
- No thermostat, so you choose the control (switch, timer, or external thermostat)
- Direct adhesive mount (no brackets, clamps, or extra work)
- Sized for 1-1/2" pipe on a 3.0mm foam pad with full-surface adhesive backing
- Pipe insulation can be run over the pad
- QAI Recognized Component, certified to CSA STD C22.2 No.130-03 and UL 499 (file E10681)
- Two year limited warranty
Specifications
- Pad size: 6" x 18"
- Pad thickness: 3.0mm foam with full-surface adhesive backing
- Fits: 1-1/2" pipe
- Voltage: 13.5V DC (12V system)
- Wattage: 24W
- Amperage: 1.8A
- Lead wire: 18"
- Thermostat: None. You supply the control
- Minimum installation temperature: 68°F (20°C)
Materials & Certifications
- Material: Silicone rubber heating element on a 3.0mm foam pad with full-surface adhesive backing for direct pipe mounting
- Circuit: Must be fused for the correct amperage and run through an on/off switch
- Certifications: QAI Recognized Component, file E10681, certified to CSA STD C22.2 No.130-03 and UL 499
- Warranty: Two year limited warranty
What's Included
- (1) Facon CW-P618 pipe heater pad with 18" lead wire
- Controller or switch not included

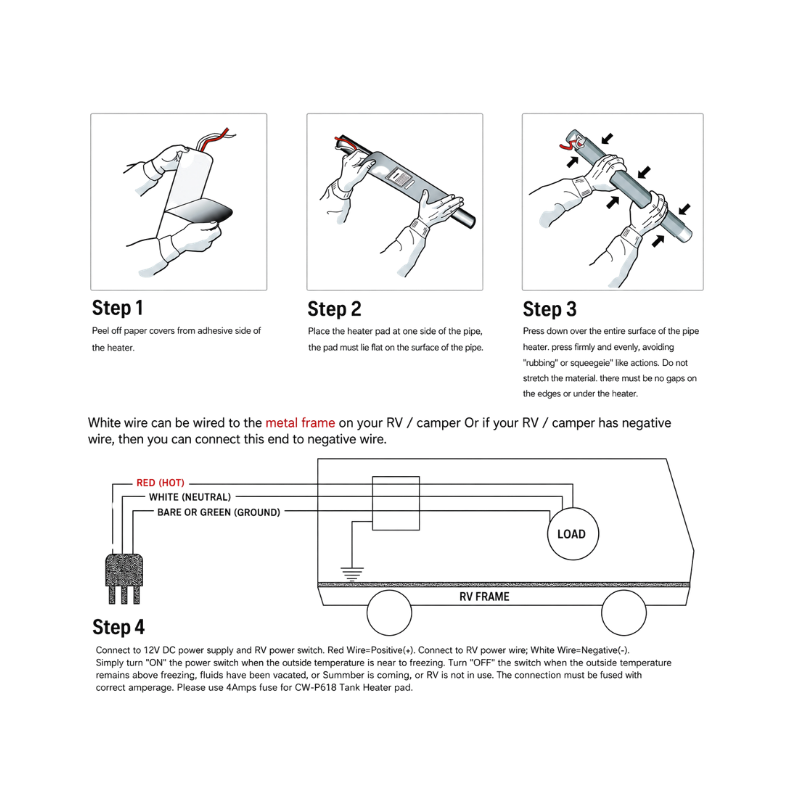

Installation & Wiring

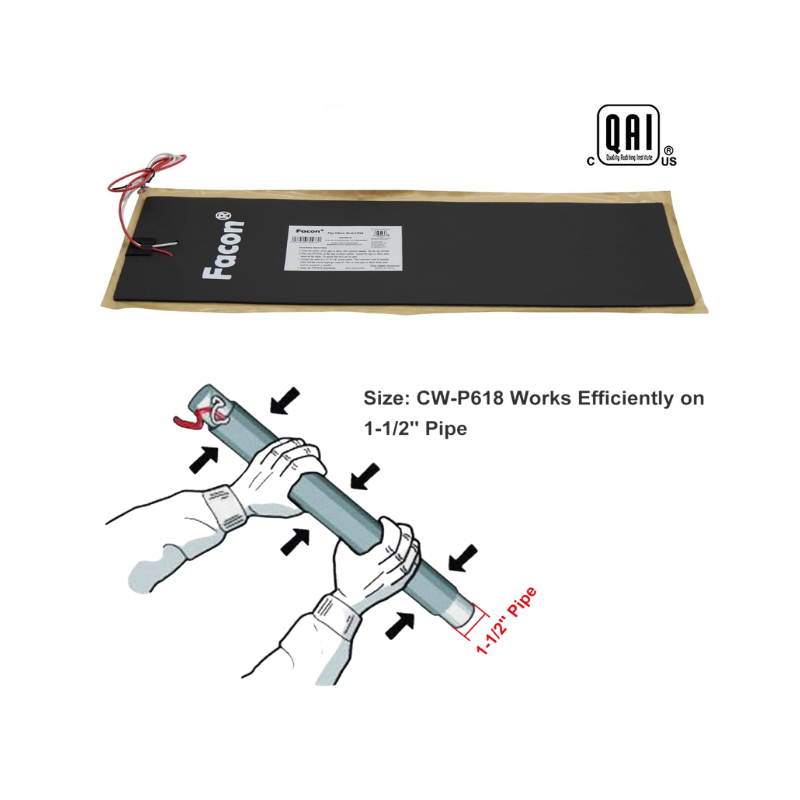

Clean the pipe with isopropyl alcohol and let it dry, peel back the adhesive paper, then press the pad on firmly and smoothly. Do not stretch it. Ambient temperature needs to be at least 68°F for the adhesive to bond, so install before cold weather hits, not during a freeze. Pipe insulation can go over the pad once it is bonded.
Wire to a 12V circuit fused for the correct amperage. Facon calls for pipe and elbow pads to be wired directly to an on/off switch, since there is no thermostat in the pad to cycle it. Observe the polarity marked on the leads. Secure the leads once the pad is in place. If you are running more than one pad, wire them in parallel and size the circuit for the combined draw.
Because nothing cycles this pad automatically, switch it on when temperatures approach freezing and off when they do not. A timer or an external thermostat handles that for you if you would rather not think about it.
Compatibility
Fits any 1-1/2" pipe run.
Shipping & Lead Time
Preorder. 3 week lead time. Orders placed now ship as soon as stock arrives.
