NW Conversions 33 Gallon Wheel Well Water Tank - Right (SP-R-33)

• Compatible with all Sprinters (1997-Present)
• Not compatible with Dually Sprinters (see SP-DU-19 and SP-DU-25)
• TRANSIT Van wheel wells are slightly smaller than the Sprinter so there is a bit more room for insulation around wheel well
• **PROMASTER** The tank needs to be elevated 3.5" to fit the large wheel wells
• Can be placed either driver or passenger side

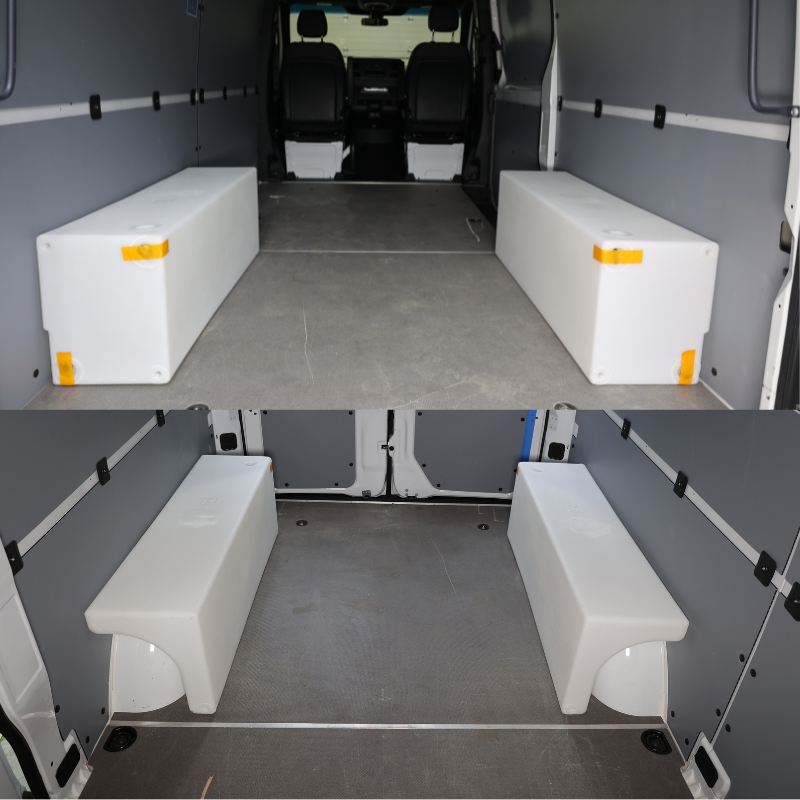

• Tank sits rear of wheel well on passenger side and in front of wheel well on driver side
• Tank has (2) 1.5” NPT ports (need to be drilled out) and (2)1/2” NPT ports on rectangular end.
• Tank has (2) 1.5" NPT ports (need to be drilled out) and (1) 1/2" NPT port on opposite end.
• Tank has (1) 1.5” NPT port (needs to be drilled out) on top or fill or level sensor
• Tank is designed not to be pressurised (I.e.  Needs to be vented).
• Tanks are made from BPA Free Food Grade Plastic
• Made in the USA

The 30 gallon wheel well water tank is designed to use the wasted space around the well. It is designed to fit the Sprinter 2500 and will also fit the Sprinter T1N and Transit single rear wheel vans. The tank can also fit other vehicle makes and models. Tank measurements are 48” long x 20” tall x 12.5” wide.

Weight: 29 lbs

Dimensions: 48 x 20 x 13 in

Tank Compatibility:
