About the Product
The Tetravan Slim is the lowest-profile in-floor shower pan available — just 3/4" deep, requiring only a 3/4" subfloor compared to the 1.3" minimum needed for the standard pan. Made from brushed magnetic stainless steel and designed to recess flush into your floor, it stays out of the way and hidden in plain sight until you need it.
Features
- 3/4" total depth — fits builds with thinner subfloor assemblies where the standard pan won't work
- Recesses flush into your floor surface for zero trip hazard and maximum headroom
- Brushed magnetic stainless steel construction
- Center drain with included 1-1/2" threaded straight drain fitting
- Compatible with the Tetravan Universal Shower Curtain — 3/8" tall magnets grab securely around the 3/4" pan edge for a watertight seal
- Flat bottom with no built-in drainage angles — recommended for builds on a slight slope, or plan to squeegee after use
What's Included
- Tetravan Slim in-floor shower pan (brushed stainless steel)
- 1-1/2" threaded straight drain fitting
Compatibility
- Compatible with any van, trailer, truck camper, popup camper, or fifth wheel build
- Requires minimum 3/4" subfloor depth
- Compatible with Tetravan Universal Shower Curtain (sold separately)

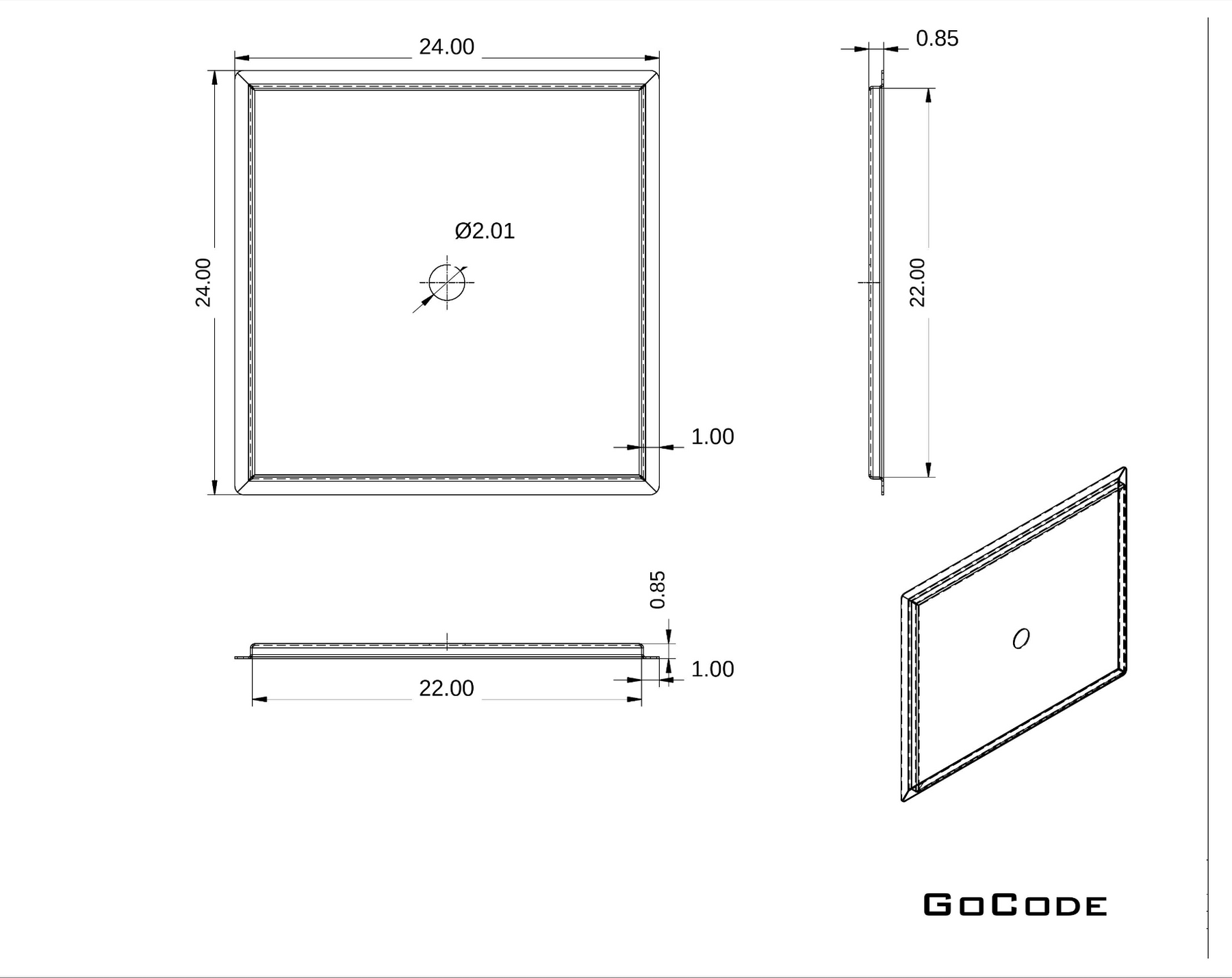

Dimensions
- Overall: 24" x 24"
- Interior (recessed area): 22" x 22"
- Total Depth: 0.85"
- Flange Width: 1"
- Center Drain Diameter: 2.01"
Shipping & Lead Times
- Ships in 1 business day
Resources
Installation Notes
- Flat bottom — no built-in drainage angles. Water will not self-drain on a level surface. Plan for a slight slope in your build or use a squeegee after showering.
- Recommended install: adhesive on underside of flange plus at least 1" countersunk screws through flange into subfloor.
Need Help? Not sure about your van's configuration or want to order individual pieces? Contact us, we're happy to help.
For UK orders please reach out to hello@projectyonder.co.uk
